Duluth Drain Field Pros: Drain Field Replacement in Duluth, MN
Duluth Drain Field Pros is a septic system contractor licensed and insured in Minnesota, working private septic ground across St. Louis County. We do drain field replacement, drain field repair, septic system installation, septic tank replacement, mound and alternative systems, soil testing and system design, septic line and baffle repairs, and commercial septic. Our customers own year round houses, lake cabins, hobby farms, shops, and small resorts in St. Louis, Carlton, and Lake counties, Minnesota.
We set Infiltrator Quick4 chambers directly on a level trench bottom, or we bed perforated pipe in washed drainage stone under non-woven fabric. A precast concrete tank with an effluent filter in the outlet tee sits ahead of the field, so solids stop in the tank. Field size comes off a soil evaluation. Set that against a field dropped in at whatever depth the bucket reached, on a bottom that runs downhill, with nothing filtering what leaves the tank. Around Duluth the rock sits close under the grass and the water table stands high. A trench cut deeper than the site allows finds rock or water instead of the clean soil that does the treating.
Call for a Free Estimate- Licensed and insured in MN
- Chamber, gravelless, and stone trench fields
- Mound and pressure systems for shallow soil
- Soil evaluation and county permit handled first
- St. Louis, Carlton, and Lake counties

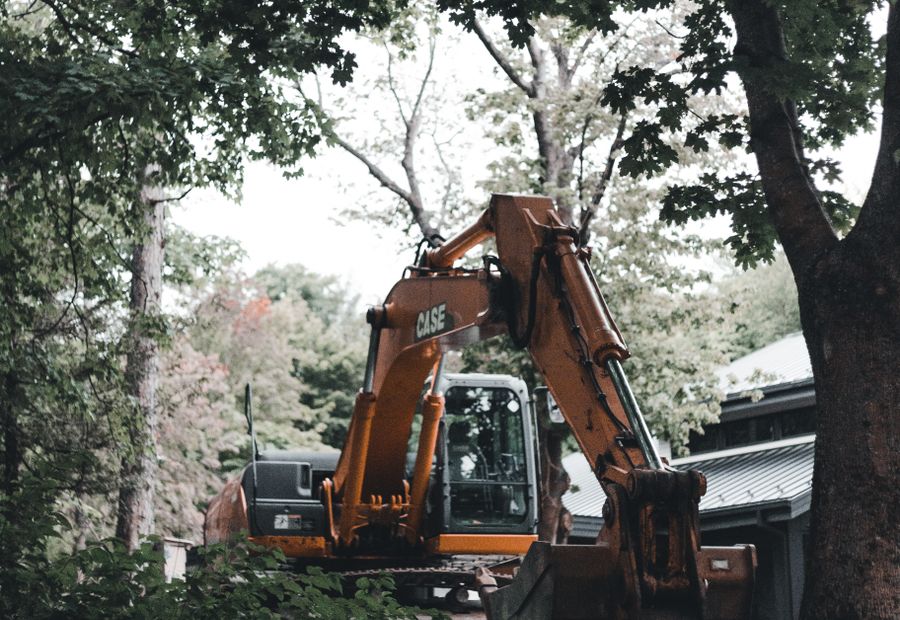

Drain Field Replacement
A drain field is soil, not plumbing. The tank settles the solids. The liquid that leaves the tank goes out to the trenches, and the ground underneath treats it as the water moves down. When that soil surface seals, the water has nowhere down to go, so it comes up. That is the wet stripe in the lawn and the backup in the basement drain.
Replacement forks two ways, and the fork is most of the price. An intact reserve area takes new trenches. A lot with no usable ground left needs a redesign. More on drain field replacement.

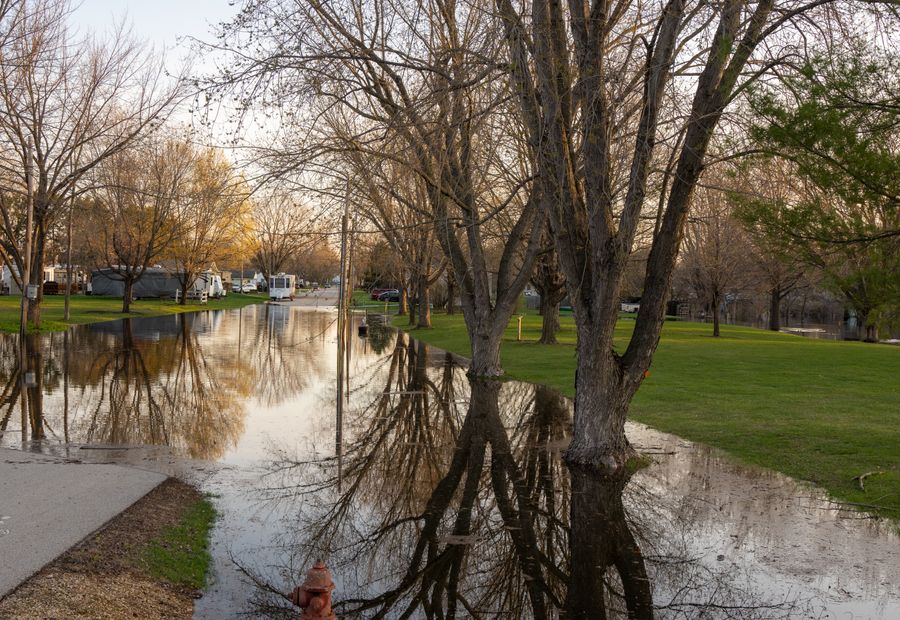

Drain Field Repair
Some failures are repairs. A lateral crushed by a truck. Roots plugging a line. A distribution box that settled out of level and now drowns one trench. A stuck float, a dead pump, a plugged effluent filter. Too much water arriving from a running toilet, a sump discharge, or a downspout aimed at the field.
Some failures are not repairs. Once the soil interface has sealed, no product poured down a drain reopens it. More on drain field repair.

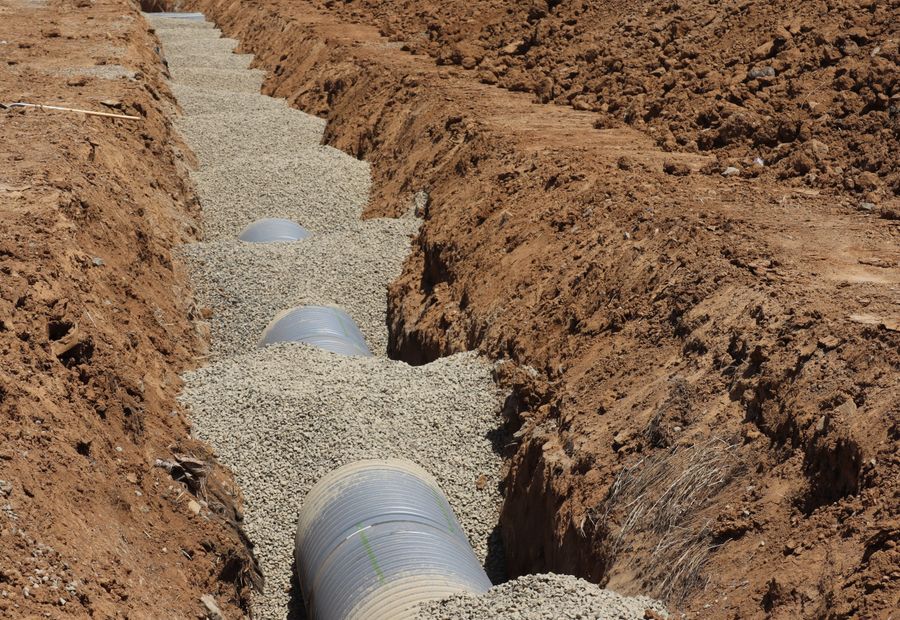

Septic System Installation
New construction on unsewered ground runs in a fixed order. Soil work first, then a design, then the county permit, then the dig, then a final inspection. Tank size follows bedroom count. Trench layout follows the soil evaluation and the shape of the lot.
We install septic system service for houses being built outside the sewer corridors and for older cabins going year round. Risers and lids come to grade so nobody digs to service the tank. More on septic system installation.

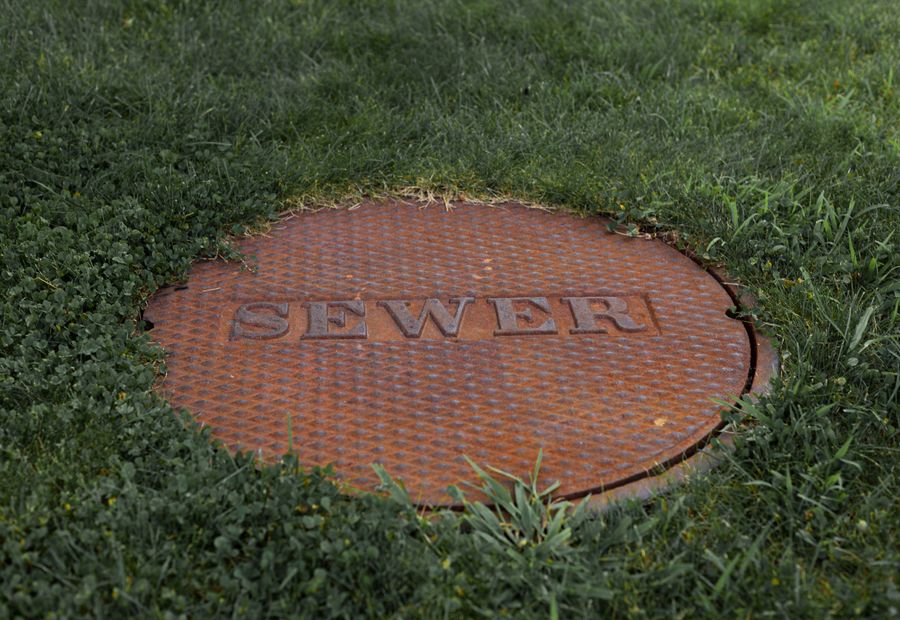

Septic Tank Replacement
A corroded concrete lid is a safety problem before it is a plumbing problem. People and animals fall through those. Baffles matter almost as much. When the outlet baffle corrodes away, solids ride straight out to the trenches and take years off the field.
This is the one job where we pump. A tank has to come down to empty before anyone lifts it out of the hole. More on septic tank replacement.

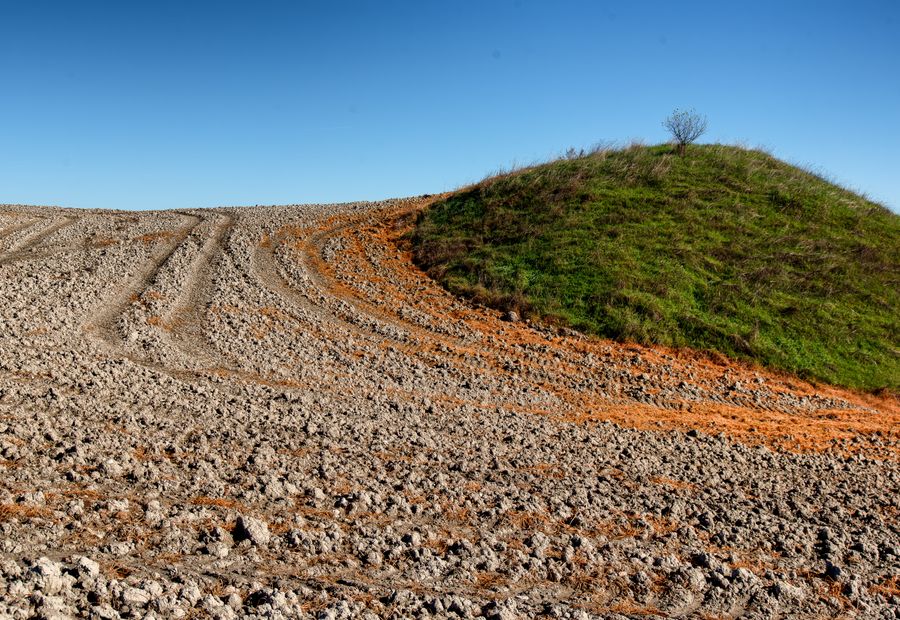

Mound and Alternative Systems
Minnesota wants a real depth of clean unsaturated soil between the bottom of a field and whatever sits below it, whether that is bedrock, hardpan, or the seasonal high water table. Roughly three feet. Plenty of ground around this city does not have it.
So the soil gets brought to the site. A mound is a field built above natural grade in imported washed sand and fed by a pump. Nobody picks one. The site picks it. See how mound and alternative systems get built.
Soil Testing and System Design
A percolation test clocks how far water falls in a hole. A soil evaluation reads the ground itself in a pit or a boring: the horizons, the texture, the color, the mottling that marks where water stands in a wet season, and the depth to rock. Minnesota leans on the evaluation, because a good perc rate can pass a lot with a rock shelf under it.
The result sizes the system and sets whether the site can carry one at all. Test before you buy land here. How soil testing and system design work.

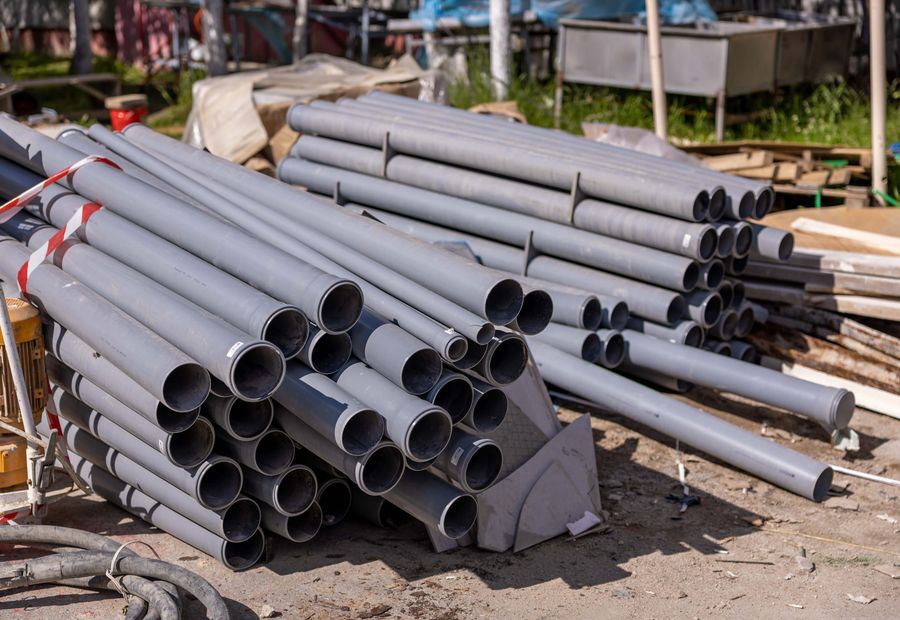

Septic Line and Baffle Repairs
Three separate runs of pipe can fail. The sewer line from the house to the tank. The outlet line from the tank to the distribution box. The laterals feeding each trench. A belly in a settled line holds water. A shallow run through this frost freezes.
We locate the line, camera it, and repair the bad length instead of trenching the whole yard where the rest is sound. Detail on septic line and baffle repairs.

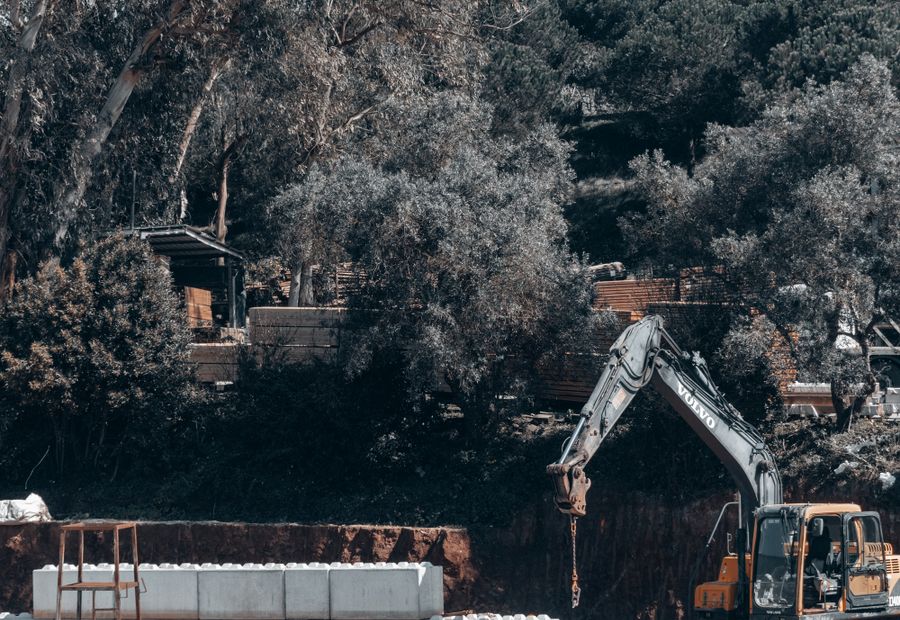

Commercial Septic
A restaurant, a church, a campground, a resort, or a shop gets sized on measured flow rather than bedroom count. Kitchens need a grease interceptor ahead of the tank, because grease reaching soil ends a field early.
We build to an engineer's drawings, phase the work so the doors stay open, and schedule the loud part outside business hours. More on commercial septic.
Why Northland Homeowners Call Us
- The tank and the field are two different jobs. Pumping empties the tank. It does nothing to the ground. A backup that clears for three weeks and returns points at the field. Begin at drain field replacement.
- We tell you which failures are fixable. A crushed lateral, a level problem in the distribution box, a dead pump, and too much water going in all have fixes. Sealed soil does not. See drain field repair.
- The soil sets the price, so the soil work comes first. Two houses on the same road get different systems and different numbers, and neither owner is getting a bad deal. Read soil testing and system design.
- We say mound when the site says mound. Shallow rock and a high water table force it. It costs more, it needs a pump and a control panel, and it takes lawn. We would rather say that early than at the permit stage. See mound and alternative systems.
- An effluent filter is cheap and it protects the expensive part. Solids that get past a missing baffle go straight to the trenches. See septic tank replacement.
- Nothing gets dug without a permit. Your county onsite wastewater office issues it, and the soil work comes with it. We confirm the requirements for your parcel and pull the paperwork before a machine moves.
Why Drain Fields Fail
Most septic pages list symptoms and stop. Here is what is happening under the grass.
Biomat, and Why It Is Not Dirt
A dark slimy layer grows on the trench bottom and sidewalls where effluent meets soil. That layer is bacteria, and a thin one is doing its job. It slows the water and treats it. A thick one seals the surface. Once sealed, the trench stops accepting water. The water still arrives every time somebody flushes, so it goes up and out instead of down.
The Pumping That Did Not Hold
Nearly everyone who reaches us has already paid a pump truck once. The tank came empty, the house drained fine for a few weeks, and then the backup came back. That is not a tank problem. An empty tank buys room. It does not change one thing about the ground the field sits in. Call a pump truck for a routine tank cleanout. Call us when the yard is wet.
Hydraulic Overload
A field sized for three bedrooms gets six people, laundry every day, and a toilet running all night that nobody hears. Add a sump pump discharging onto the trenches and a downspout doing the same. The soil never gets to drain between doses. A saturated field cannot take water even when it looks perfect from the driveway.
Weight on Top of the Field
Field pipe and chambers sit shallow. A pickup, a camper, a boat trailer, a skid steer, a fill pile, or a new driveway crushes the pipe and compacts the ground beneath it. Compacted soil does not accept water again. There is no fix short of new trenches, which is why we ask what has been parked out there.
Roots Follow the Water
Willows, poplars, and silver maples send roots toward effluent, because effluent is the wettest thing in the yard. Roots plug laterals and lift them out of grade. A field cut into a mature tree line lives shorter than the same field in open lawn.
What Additives Do
Nothing poured into a toilet reopens soil pores that have sealed. Nothing poured into a toilet un-compacts ground a truck drove over, and nothing lowers a water table. Bacteria and enzyme products get sold hardest to people staring at a large number. Here is the physics, and you can draw your own conclusion.
Vertical Separation
There has to be a depth of clean unsaturated soil between the trench bottom and whatever sits below it. Bedrock, a hardpan layer, or the seasonal high water table. In this state the figure runs around three feet, and your county confirms it for your parcel. Where a lot carries that depth, the trenches go under the lawn. Where it does not, sand gets hauled in and the field is built up on top of it.
The Four Things That Kill a Field Early
A field sized without real soil work. A trench bottom that is not level, so one end takes all the water. A tank with no effluent filter passing solids downstream. Anything driven or built over the trenches afterward. Dodge all four and a field runs for decades.
A Clog Inside the House
One slow fixture, dry ground outside, and no alarm usually means a blockage between that fixture and the tank. That is a plumber's call, and the local drain cleaners handle those every day.
How a Field Replacement Runs
Look at the System
We open the tank and read the level. We walk the wet ground, find the trenches, and ask what runs into them. Water use, roof runoff, sump discharge, and what gets parked on the lawn.
Soil Work
A licensed designer digs pits or borings, reads the profile, and records depth to rock and to seasonal water. That result sizes the field and tells us whether the reserve area still works.
Design and Permit
The design goes to your county onsite wastewater office with the permit application. St. Louis, Carlton, and Lake counties each run their own office, so the paperwork follows the parcel.
Dig and Build
We strip the area, cut level trench bottoms, set chambers or pipe and stone, tie in the distribution, and install the pump and controls when the design calls for them.
Cover, Grade, and Seed
The inspector sees the system open. Then it gets backfilled, graded to shed surface water away from the trenches, and seeded. The old field gets abandoned in place.
What a Drain Field Costs Around Duluth
There is no average worth printing, because the honest answer is a fork. One outcome is new trenches in a reserve area that is still intact and still passes evaluation. The other is a redesign, meaning a mound, an at-grade, pressure distribution, or treatment ahead of a smaller field. Those two sit far apart. The soil evaluation decides which one your lot gets, and that is why we will not put a number on your yard over the phone.
| Work | Typical Range | Notes |
|---|---|---|
| Soil evaluation and system design | $700 - $2,200 | Pits or borings, profile read, drawing for the county |
| New trenches in an intact reserve area | $8,000 - $18,000 | Gravity field, chambers or pipe and stone, old field abandoned |
| Mound system | $18,000 - $35,000 | Imported sand, pump, floats, control panel, larger footprint |
| At-grade system | $14,000 - $26,000 | Lower profile than a mound where the site allows it |
| Septic tank replacement | $3,500 - $9,000 | Concrete or poly, risers to grade, effluent filter, pump down |
| Distribution box repair or reset | $600 - $2,000 | Level the box, add flow levelers, replace a cracked box |
| Lateral or sewer line repair | $900 - $4,500 | Locate, camera, open the bad length, restore slope and cover |
| Effluent pump and control panel | $1,800 - $4,500 | Pump, floats, alarm, and panel for a dosed system |
A flat lot near Hermantown with deep soil and a clear reserve area sits at the bottom of these ranges. A lake parcel on shallow rock with a long carry for sand sits at the top.
What moves the number:
- What the soil evaluation finds, and how fast the ground accepts water
- Depth to bedrock and to the seasonal high water table
- Field size, which follows bedroom count and measured flow
- Whether an intact reserve area still exists on the lot
- Machine access, and how far material has to be carried
- How many yards of sand or stone come in, and how much spoil goes out
- Whether the design needs a pump, floats, and a control panel
- Trees, wells, water lines, and setbacks that shrink the usable ground
Frequently Asked Questions
How long does a drain field last?
A field built on good soil and looked after runs decades. Four habits decide it. Getting the tank pumped on a schedule, so solids never travel. Keeping an effluent filter in the outlet. Keeping vehicles and structures off the trenches. Watching how much water the house sends out. A tank nobody has opened in fifteen years can take a field out in well under half its life.
What are the signs of a failing drain field?
Look outside first. Soggy ground or standing water over the trenches, a stripe of grass greener and taller than the rest of the lawn, and a smell in the yard. Inside you get slow drains through the whole house, gurgling, a backup at the lowest drain, and the tank alarm. Indoor trouble with dry ground outside and no alarm usually points at a clog inside the house instead.
How do I know if it is the tank or the drain field?
Use the yard as the test. Wet ground, a smell outside, and a backup that returns soon after a pumping all point at the field. Dry ground, no alarm, and one affected fixture point at a line or a clog. Opening the tank settles it, because the liquid level tells you whether water is leaving the tank at all. That is what the site visit is for.
Can I build or park over a drain field?
No, and the reason is weight rather than a rule. Field pipe runs shallow, and load crushes it. Load also compacts the soil that is supposed to accept water, and compacted soil does not recover. Keep trucks, campers, trailers, sheds, fill piles, patios, and new driveways off the trenches. Protect the reserve area the same way, because that is the ground your next field goes in.
What is a perc test and do I need one?
A perc test times how fast water drops in a hole in the ground. The more useful test now is a soil evaluation, where a licensed designer reads the profile in a pit or boring for texture, layering, wetness, and depth to rock. Minnesota relies on the evaluation. Which one your parcel needs is set by your county, and the result sizes the system.
Why do so many Duluth area sites end up on a mound?
Bedrock. This corner of the state sits on the Canadian Shield, and the soil over that rock is thin. The water table is high near Lake Superior and near the inland lakes. A conventional trench field needs clean unsaturated soil under it, and plenty of lots here do not have that depth. When the ground does not carry the separation, the sand gets hauled in and the field is built above grade.
Who issues the septic permit in this area?
Your county, and there are three of them in our service area. St. Louis County permits through the Onsite Wastewater division of Planning and Zoning. Carlton County permits through Zoning and Environmental Services, which is where Cloquet and Esko go. Lake County permits through Planning and Zoning in Two Harbors. Minnesota writes the rules and the counties administer them, so requirements are not identical across a county line.
Do you dig in the winter?
No, and we will not promise one. Frost drives deep in St. Louis County, deeper than almost anywhere else in the state. Frozen ground stops excavation, and a mound needs workable material to build with. Winter here is evaluation season where the ground allows it, plus drawings, permits, and a spot on the spring schedule. Saturated spring ground moves a start date too.
My cabin sits empty most of the year. Why did the system freeze?
A lightly used system freezes more readily than a full time one. Warm water moving through pipe every day is what keeps a shallow run open through a Northland winter. A cabin that sees nobody from November to April sends nothing through, so the line and sometimes the tank can freeze. Cover depth, slope, and insulation over the shallow sections are what we look at.
Do you pump septic tanks?
Not as a service. We dig, and a pump truck pumps, so call a septic pumping company for a routine cleanout. We do pump a tank down when we are about to lift it out of the ground or abandon it, because it has to be empty first. If your field has failed, getting the tank pumped buys some room while the permit runs. It is not the fix.
Are you licensed and insured?
Yes. Minnesota licenses the businesses and certifies the individuals who design, install, and inspect these systems, and we carry that credential plus liability insurance. Copies go to you, your lender, or your buyer on request. You get the design, the method, and the price in writing before anybody digs.
Thin Soil, Deep Frost, and Cabin Country
Northeastern Minnesota sits on the Canadian Shield. The bedrock under Duluth is old volcanic rock, part of the Duluth Complex, and the forest soil lying on top of it is thin and acidic. That single fact drives septic work here more than anything else. A drain field needs soil depth under it, and a lot of ground in this county runs out of soil before it gets there.
Water is the other half. The lake sits at the bottom of the hill and the inland lakes sit everywhere else, so the seasonal high water table comes up close in a lot of places. Between rock above and water below, the clean unsaturated layer a trench needs is often thinner than the design calls for. That is why mound and at-grade systems are ordinary work around here rather than a last resort. A designer is not reaching for a mound. The ground reaches for it.
Frost is the third fact. St. Louis County builds to the deepest frost tier in Minnesota, and that same cold reaches septic components. Cover depth over shallow pipe is a design decision, not an afterthought. It also means the excavation calendar is short. We quote, evaluate, design, and permit through the cold months, then dig when the frost is out and the ground carries a machine.
Then there are the cabins. Lake property runs empty most of the year and then holds eight people for a long weekend in July. An older system installed before the current rules handles the empty months fine and then meets a load it was never sized for. Property transfers add the other trigger, because a sale can bring a compliance inspection and a system that was quietly limping suddenly has to pass. Both of those calls land here every season.
Sewer service tells you where the work is. The Western Lake Superior Sanitary District network, now Resource Renew, reaches Duluth and a set of named corridors. Everything outside those corridors runs on a private tank and a private field, and most township ground in this ring is outside them. Few Minnesota townships operate any wastewater system of their own, because running pipe across low density land costs more than the land can carry.
Septic Work Across St. Louis, Carlton, and Lake Counties
We work private septic ground across St. Louis, Carlton, and Lake counties, Minnesota. That covers the rural stretches of Rice Lake and the outlying parcels around Hermantown, the unincorporated country at Canyon, Saginaw, and Island Lake, the Lake County township land around Two Harbors, and the fringe outside the sewer corridor at Cloquet and Esko. Call us from any of them.
Wet Spot in the Yard? Let Us Look at It.
Call (218) 555-0138 for a free estimate. Tell us how many bedrooms the house has, when the tank was last pumped, whether the backup returned after that pumping, and what the ground over the field looks like now. Say whether an alarm is sounding and what gets parked on the lawn. We will tell you whether you are looking at a line repair, a distribution fix, new trenches in the reserve area, or a redesigned system. Until we get there, cut water use hard and get the tank pumped to buy room while the permit runs.
